Описание
Features:Modify current, microsteps and parameters,by usb serial and OLED.
Processor frequency is up to 72 MHz and closed-loop feedback frequency is up to 8kHz to prevent from losing steps during printing.
15 bit encoder, over 0.1 degree accuracy.
Up to support 256 microsteps.
Using STM32 chip, high frequency, fast processing.
The closed-loop firmware stepper stm32 V2.0.bin can be updated via USB bootloader.
Specifications:
Material: Metal
Color: black
Types: With Display, Without Display
Input voltage: 12V- 24V
Maximum input current: 1500ma(42)/2500ma(57)
Accuracy: >0.1125 degree
Microstep: 1/2/4/8/16/32/64/128/256

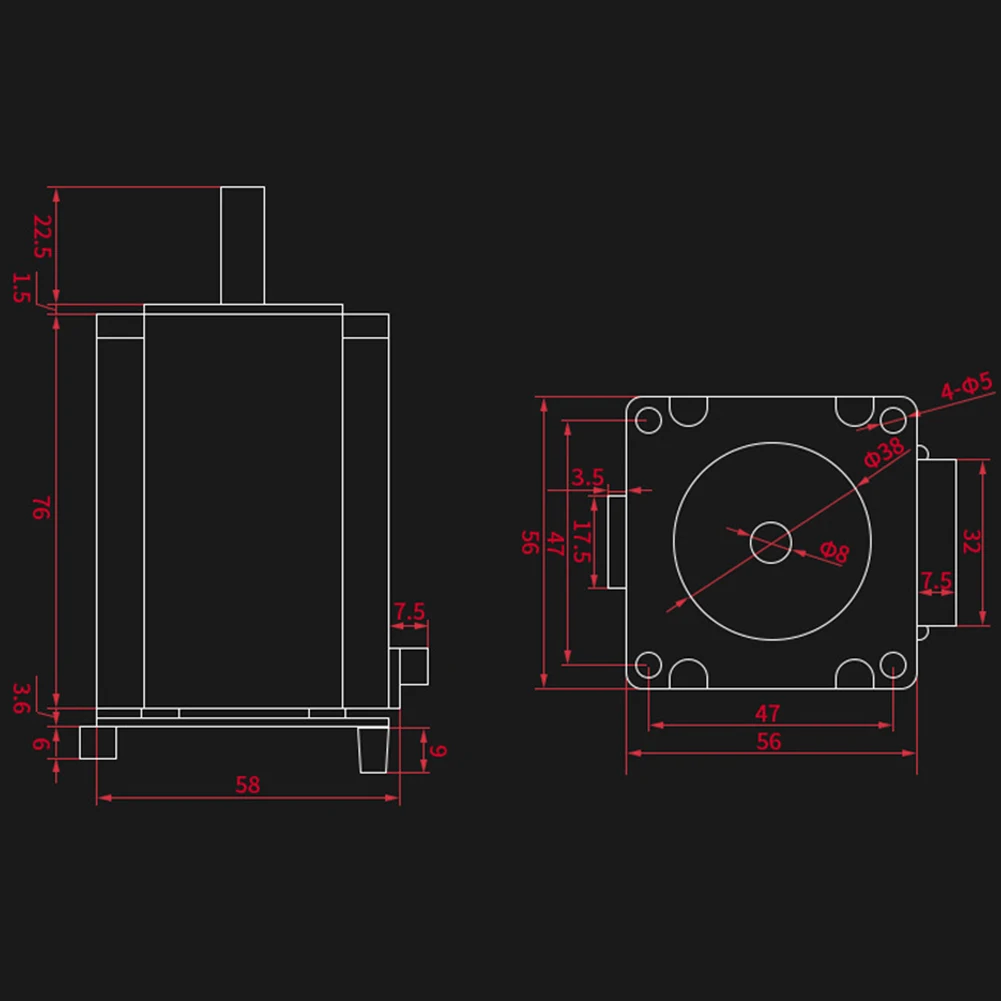

Size: (Approx) 76X58mm, 56x56mm(Please see the picture for the specific size.)

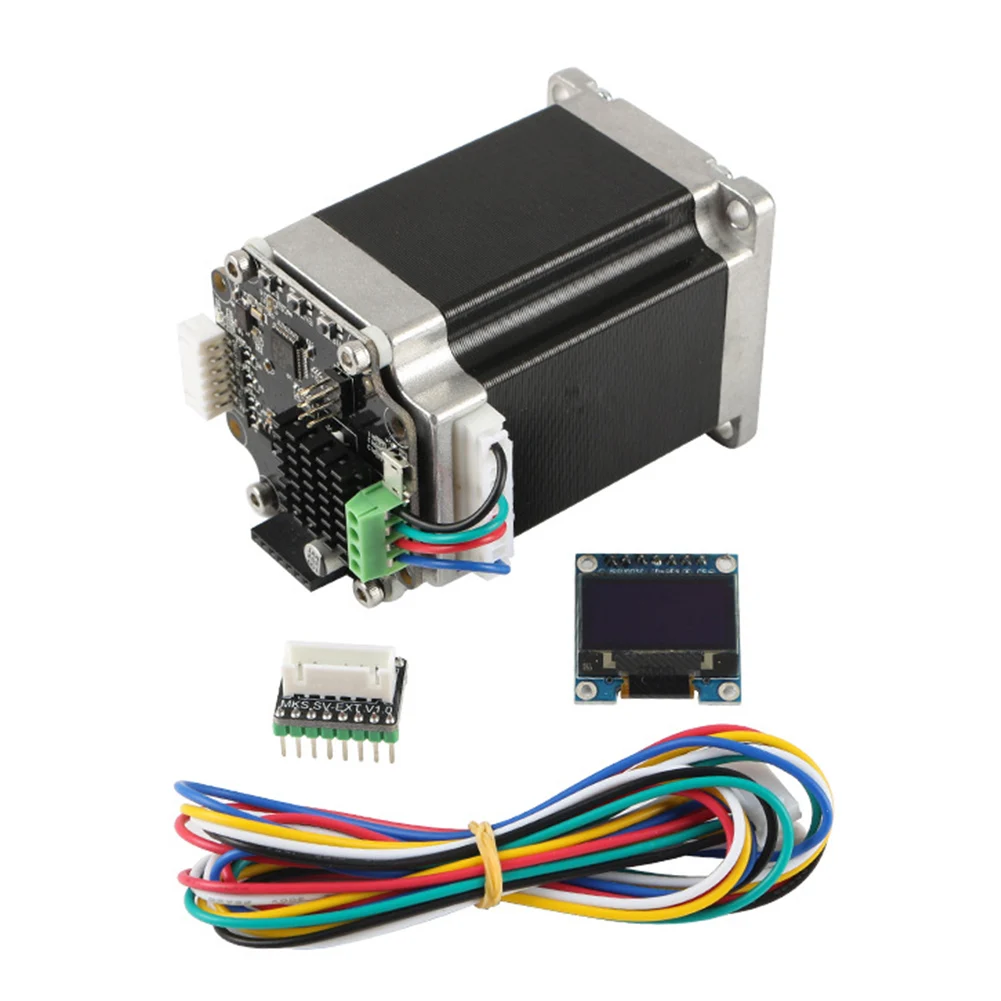

Package Included:
1 PC x 57 Motor
1 PC x 57 Motor Board
1 PC x Data Cable
1 PC x Motor Cable
1 PC x Motor Module
1 PC x Display(Optional)
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
